element <underlyingAsset> (global abstract)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Asset
Content:
empty, 1 attribute
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
may be substituted with 12 elements
Defined:
globally in fpml-asset-5-3.xsd; see XML source
Used:
at 18 locations

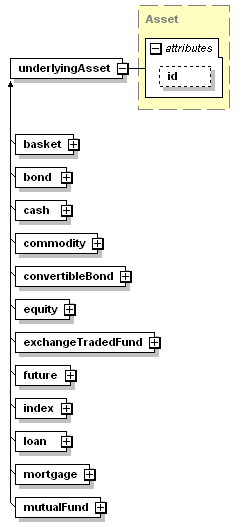

Content Model Diagram
XML Representation Summary
<underlyingAsset

id
 =
 xsd:ID
/>
Included in content model of elements (6):
basketConstituent, point (in dataPoints),
underlyer (defined in GenericProduct complexType)
May be substituted with elements (12):
basket, bond, cash, commodity, convertibleBond, equity, exchangeTradedFund, future, index, loan, mortgage, mutualFund
Known Usage Locations
Annotation
Define the underlying asset, either a listed security or other instrument.
XML Source (w/o annotations (1); see within schema source)
<xsd:element abstract="true" name="underlyingAsset" type="Asset"/>
