element <commodity> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Commodity
Content:
complex, 1 attribute, 14 elements
Subst.Gr:
may substitute for element underlyingAsset
Defined:
globally in fpml-asset-5-3.xsd; see XML source
Used:
never

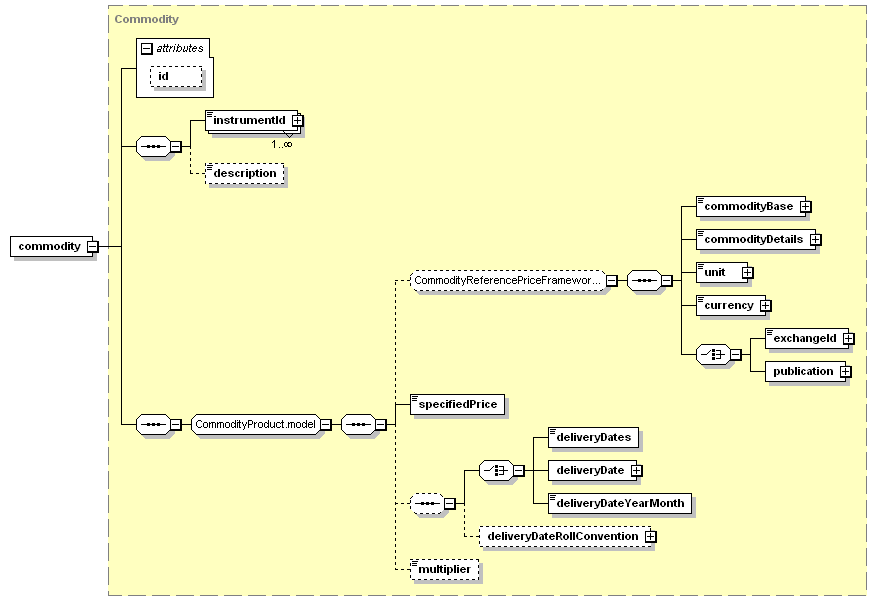

Content Model Diagram
XML Representation Summary
<commodity

id
 =
 xsd:ID
    >

Content:
 instrumentId+, description?, (commodityBase, commodityDetails, unit, currency, (exchangeId | publication))?, specifiedPrice, ((deliveryDates | deliveryDate | deliveryDateYearMonth), deliveryDateRollConvention?)?, multiplier?
</commodity>
Content model elements (14):
commodityBase,
commodityDetails,
currency (defined in CommodityReferencePriceFramework.model group),
deliveryDate,
deliveryDateRollConvention,
deliveryDates,
deliveryDateYearMonth,
description (defined in IdentifiedAsset complexType),
exchangeId (defined in CommodityReferencePriceFramework.model group),
instrumentId (defined in IdentifiedAsset complexType),
multiplier (defined in CommodityProduct.model group),
publication,
specifiedPrice,
unit (defined in CommodityReferencePriceFramework.model group)
May be included in elements by substitutions (6):
basketConstituent, point (in dataPoints),
underlyer (defined in GenericProduct complexType)
Annotation
Identifies the underlying asset when it is a listed commodity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodity" substitutionGroup="underlyingAsset" type="Commodity"/>
