group "CommodityProduct.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
12 elements
Defined:
globally in fpml-asset-5-3.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 1 location

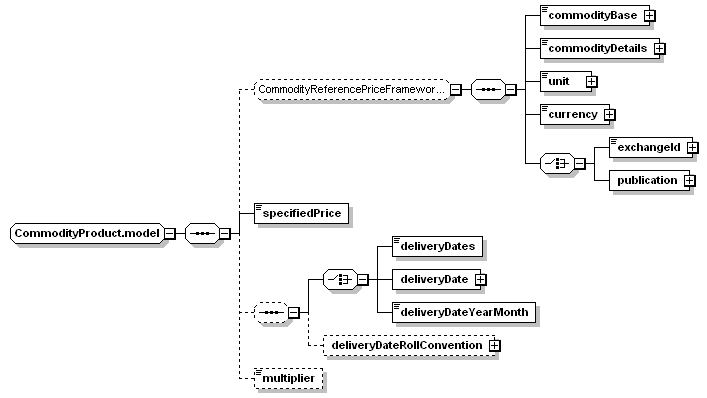

Content Model Diagram
Complex Content Model
(commodityBase, commodityDetails, unit, currency, (exchangeId | publication))?, specifiedPrice, ((deliveryDates | deliveryDate | deliveryDateYearMonth), deliveryDateRollConvention?)?, multiplier?
Content Model Elements (12):
commodityBase,
commodityDetails,
currency (defined in CommodityReferencePriceFramework.model group),
deliveryDate,
deliveryDateRollConvention,
deliveryDates,
deliveryDateYearMonth,
exchangeId (defined in CommodityReferencePriceFramework.model group),
multiplier (defined in CommodityProduct.model group),
publication,
specifiedPrice,
unit (defined in CommodityReferencePriceFramework.model group)
Known Usage Locations
Annotation
A group used to specify details of a commodity underlyer.
XML Source (w/o annotations (7); see within schema source)
<xsd:group name="CommodityProduct.model">
<xsd:sequence>
<xsd:group minOccurs="0" ref="CommodityReferencePriceFramework.model"/>
<xsd:element name="specifiedPrice" type="SpecifiedPriceEnum"/>
<xsd:sequence minOccurs="0">
<xsd:choice>
<xsd:element name="deliveryDates" type="DeliveryDatesEnum"/>
<xsd:element name="deliveryDate" type="AdjustableDate"/>
<xsd:element name="deliveryDateYearMonth" type="xsd:gYearMonth"/>
</xsd:choice>
<xsd:element minOccurs="0" name="deliveryDateRollConvention" type="Offset"/>
</xsd:sequence>
<xsd:element minOccurs="0" name="multiplier" type="PositiveDecimal"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 6/12)
deliveryDate
Type:
AdjustableDate, complex content
The Delivery Date is a fixed, single day.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryDate" type="AdjustableDate"/>
deliveryDateRollConvention
Type:
Offset, complex content
Specifies, for a Commodity Transaction that references a listed future via the deliveryDates element, the day on which the specified future will roll to the next nearby month when the referenced future expires. If the future will not roll at all - i.e. the price will be taken from the expiring contract, 0 should be specified here. If the future will roll to the next nearby on the last trading day - i.e. the price will be taken from the next nearby on the last trading day, then 1 should be specified and so on.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="deliveryDateRollConvention" type="Offset"/>
deliveryDates
Type:
DeliveryDatesEnum, simple content
The Delivery Date is a NearbyMonth, for use when the Commodity Transaction references Futures Contract.
Simple Content
enumeration of xsd:token
Enumeration:
"CalculationPeriod"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the futures contract that corresponds to the month and year of the Calculation Period. e.g. The JAN 09 contract when pricing in January '09 (In the case of contracts like Brent crude, this will mean that the contract expired in DEC 08.)
See:  http://www.FpML.org
"FirstNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the First Nearby Month futures contract.
See:  http://www.FpML.org
"SecondNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Second Nearby Month futures contract.
See:  http://www.FpML.org
"ThirdNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Third Nearby Month futures contract.
See:  http://www.FpML.org
"FourthNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Fourth Nearby Month futures contract.
See:  http://www.FpML.org
"FifthNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Fifth Nearby Month futures contract.
See:  http://www.FpML.org
"SixthNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Sixth Nearby Month futures contract.
See:  http://www.FpML.org
"SeventhNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Seventh Nearby Month futures contract.
See:  http://www.FpML.org
"EighthNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Eighth Nearby Month futures contract.
See:  http://www.FpML.org
"NinthNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Ninth Nearby Month futures contract.
See:  http://www.FpML.org
"TenthNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Tenth Nearby Month futures contract.
See:  http://www.FpML.org
"EleventhNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Eleventh Nearby Month futures contract.
See:  http://www.FpML.org
"TwelfthNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Twelfth Nearby Month futures contract.
See:  http://www.FpML.org
"ThirteenthNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Thirteenth Nearby Month futures contract.
See:  http://www.FpML.org
"FourteenthNearby"
 -
 The Delivery Date of the underlying Commodity shall be the month of expiration of the Fourteenth Nearby Month futures contract.
See:  http://www.FpML.org
"Spot"
 -
 The Delivery Date of the underlying Commodity shall be the Spot date.
See:  http://www.FpML.org
"FirstNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the First Nearby Week.
See:  http://www.FpML.org
"SecondNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Second Nearby Week.
See:  http://www.FpML.org
"ThirdNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Third Nearby Week.
See:  http://www.FpML.org
"FourthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Fourth Nearby Week.
See:  http://www.FpML.org
"FifthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Fifth Nearby Week.
See:  http://www.FpML.org
"SixthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Sixth Nearby Week.
See:  http://www.FpML.org
"SeventhNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Seventh Nearby Week.
See:  http://www.FpML.org
"EighthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Eighth Nearby Week.
See:  http://www.FpML.org
"NinthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Ninth Nearby Week.
See:  http://www.FpML.org
"TenthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Tenth Nearby Week.
See:  http://www.FpML.org
"EleventhNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Eleventh Nearby Week.
See:  http://www.FpML.org
"TwelfthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twelfth Nearby Week.
See:  http://www.FpML.org
"ThirteenthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirteenth Nearby Week.
See:  http://www.FpML.org
"FourteenthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Fourteenth Nearby Week.
See:  http://www.FpML.org
"FifteenthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Fifteenth Nearby Week.
See:  http://www.FpML.org
"SixteenthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Sixteenth Nearby Week.
See:  http://www.FpML.org
"SeventeenthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Seventeenth Nearby Week.
See:  http://www.FpML.org
"EighteenthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Eighteenth Nearby Week.
See:  http://www.FpML.org
"NineteenthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Nineteenth Nearby Week.
See:  http://www.FpML.org
"TwentiethNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twentieth Nearby Week.
See:  http://www.FpML.org
"TwentyFirstNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twenty First Nearby Week.
See:  http://www.FpML.org
"TwentySecondNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twenty Second Nearby Week.
See:  http://www.FpML.org
"TwentyThirdNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twenty Third Nearby Week.
See:  http://www.FpML.org
"TwentyFourthearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twenty Fourth Nearby Week.
See:  http://www.FpML.org
"TwentyFifthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twenty Fifth Nearby Week.
See:  http://www.FpML.org
"TwentySixthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twenty Sixth Nearby Week.
See:  http://www.FpML.org
"TwentySeventhNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twenty Seventh Nearby Week.
See:  http://www.FpML.org
"TwentyEighthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twenty Eighth Nearby Week.
See:  http://www.FpML.org
"TwentyNinthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Twenty Ninth Nearby Week.
See:  http://www.FpML.org
"ThirtiethNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirtieth Nearby Week.
See:  http://www.FpML.org
"ThirtyFirstNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirty First Nearby Week.
See:  http://www.FpML.org
"ThirtySecondNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirty Second Nearby Week.
See:  http://www.FpML.org
"ThirtyThirdNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirty Third Nearby Week.
See:  http://www.FpML.org
"ThirtyFourthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirty Fourth Nearby Week.
See:  http://www.FpML.org
"ThirtyFifthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirty Fifth Nearby Week.
See:  http://www.FpML.org
"ThirtySixthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirty Sixth Nearby Week.
See:  http://www.FpML.org
"ThirtySeventhNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirty Seventh Nearby Week.
See:  http://www.FpML.org
"ThirtyEighthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirty Eighth Nearby Week.
See:  http://www.FpML.org
"ThirtyNinthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Thirty Ninth Nearby Week.
See:  http://www.FpML.org
"FortiethNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Fortieth Nearby Week.
See:  http://www.FpML.org
"FortyFirstNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Forty First Nearby Week.
See:  http://www.FpML.org
"FortySecondNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Forty Second Nearby Week.
See:  http://www.FpML.org
"FortyThirdNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Forty Third Nearby Week.
See:  http://www.FpML.org
"FortyFourthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Forty Fourth Nearby Week.
See:  http://www.FpML.org
"FortyFifthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Forty Fifth Nearby Week.
See:  http://www.FpML.org
"FortySixthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Forty Sixth Nearby Week.
See:  http://www.FpML.org
"FortySeventhNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Forty Seventh Nearby Week.
See:  http://www.FpML.org
"FortyEighthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Forty Eighth Nearby Week.
See:  http://www.FpML.org
"FortyNinthNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Forty Ninth Nearby Week.
See:  http://www.FpML.org
"FiftiethNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Fiftieth Nearby Week.
See:  http://www.FpML.org
"FiftyFirstNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Fifty First Nearby Week.
See:  http://www.FpML.org
"FiftySecondNearbyWeek"
 -
 The Delivery Date of the underlying Commodity shall be during the Fifty Second Nearby Week.
See:  http://www.FpML.org
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryDates" type="DeliveryDatesEnum"/>
deliveryDateYearMonth
Type:
xsd:gYearMonth, predefined, simple content
The Delivery Date is a fixed, single month.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryDateYearMonth" type="xsd:gYearMonth"/>
multiplier
Type:
PositiveDecimal, simple content
Specifies the multiplier associated with a Transaction.
Simple Content
xsd:decimal
minExclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="multiplier" type="PositiveDecimal"/>
specifiedPrice
Type:
SpecifiedPriceEnum, simple content
The Specified Price is not defined in the Commodity Reference Price and so needs to be stated in the Underlyer definition as it will impact the calculation of the Floating Price.
Simple Content
enumeration of xsd:token
Enumeration:
"Afternoon"
 -
 The Specified Price shall be the Afternoon fixing reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Ask"
 -
 The Specified Price shall be the Ask price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Bid"
 -
 The Specified Price shall be the Bid price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Closing"
 -
 The Specified Price shall be the Closing price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"High"
 -
 The Specified Price shall be the High price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Index"
 -
 The Specified Price shall be the Index price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"MeanOfBidAndAsk"
 -
 The Specified Price shall be the Average of the Bid and Ask prices reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Low"
 -
 The Specified Price shall be the Low price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"MeanOfHighAndLow"
 -
 The Specified Price shall be the Average of the High and Low prices reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Morning"
 -
 The Specified Price shall be the Morning fixing reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Official"
 -
 The Specified Price shall be the Official price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Opening"
 -
 The Specified Price shall be the Opening price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"OSP"
 -
 The Specified Price shall be the Official Settlement Price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Settlement"
 -
 The Specified Price shall be the Settlement price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Spot"
 -
 The Specified Price shall be the Spot price reported in or by the relevant Price Source as specified in the relevant Confirmation.
"Midpoint"
 -
 The Specified Price shall be the Average of the Midpoint of prices reported in or by the relevant Price Source as specified in the relevant Confirmation.
"WeightedAverage"
 -
 The Specified Price shall be the volume Weighted Average of prices effective on the Pricing Date reported in or by the relevant Price Source as specified.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="specifiedPrice" type="SpecifiedPriceEnum"/>
XML schema documentation generated with DocFlex/XML 1.8.6b2 using DocFlex/XML XSDDoc 2.5.1 template set. All content model diagrams generated by Altova XMLSpy via DocFlex/XML XMLSpy Integration.
