element <commodityBase> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	CommodityBase
Content:	simple, 1 attribute
Defined:	locally witnin CommodityReferencePriceFramework.model group in fpml-asset-5-3.xsd; see XML source

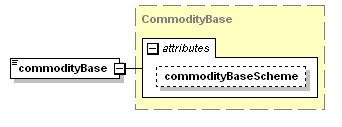

Content Model Diagram

XML Representation Summary

<commodityBase

commodityBaseScheme

xsd:anyURI

Content:

{ xsd:normalizedString }

</commodityBase>

Simple Content Detail:

MaxLength:

255

Included in content model of elements (3):

commodity,

commodity (in commodityOption),

commodity (in floatingLeg)

Annotation

A coding scheme value to identify the base type of the commodity being traded. Where possible, this should follow the naming convention used in the 2005 ISDA Commodity Definitions. For example, 'Oil'.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commodityBase" type="CommodityBase"/>
