element <commodity> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Commodity
Content:
complex, 1 attribute, 14 elements
Defined:
locally witnin CommodityFinancialOption.model group in fpml-com-5-3.xsd; see XML source

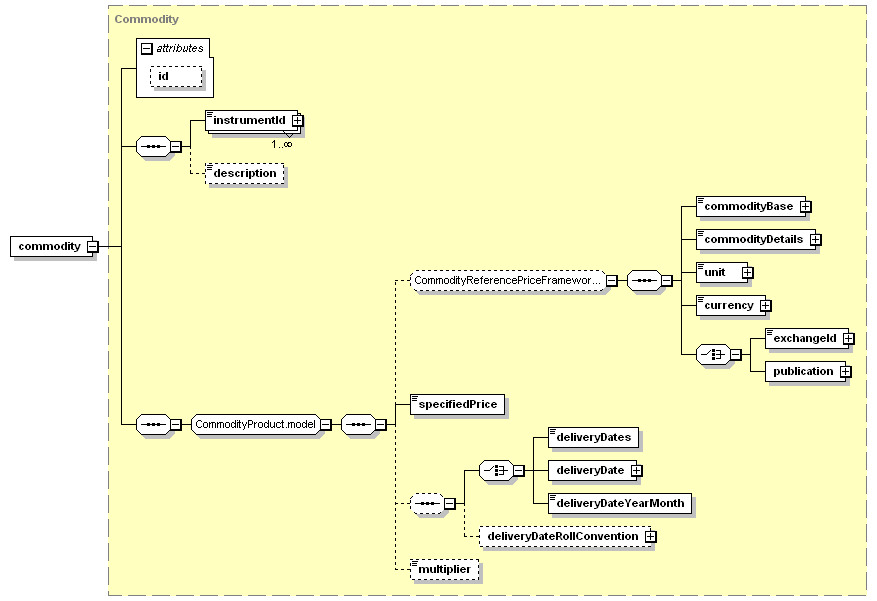

Content Model Diagram
XML Representation Summary
<commodity

id
 =
 xsd:ID
    >

Content:
 instrumentId+, description?, (commodityBase, commodityDetails, unit, currency, (exchangeId | publication))?, specifiedPrice, ((deliveryDates | deliveryDate | deliveryDateYearMonth), deliveryDateRollConvention?)?, multiplier?
</commodity>
Content model elements (14):
commodityBase,
commodityDetails,
currency (defined in CommodityReferencePriceFramework.model group),
deliveryDate,
deliveryDateRollConvention,
deliveryDates,
deliveryDateYearMonth,
description (defined in IdentifiedAsset complexType),
exchangeId (defined in CommodityReferencePriceFramework.model group),
instrumentId (defined in IdentifiedAsset complexType),
multiplier (defined in CommodityProduct.model group),
publication,
specifiedPrice,
unit (defined in CommodityReferencePriceFramework.model group)
Included in content model of elements (1):
commodityOption
Annotation
Specifies the underlying component. At the time of the initial schema design, only underlyers of type Commodity are supported; the choice group in the future could offer the possibility of adding other types later.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodity" type="Commodity"/>
