group "CommodityCalculationPeriods.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
6 elements
Defined:
globally in fpml-com-5-3.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 2 locations

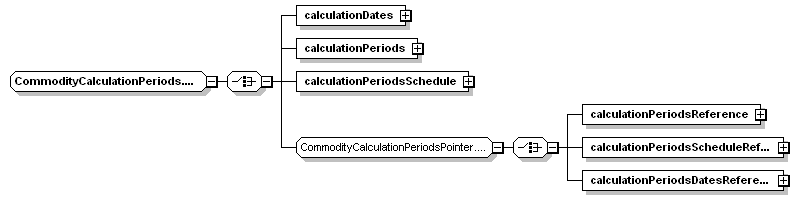

Content Model Diagram
Complex Content Model
calculationDates | calculationPeriods | calculationPeriodsSchedule | calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference
Content Model Elements (6):
calculationDates (defined in CommodityCalculationPeriods.model group),
calculationPeriods (defined in CommodityCalculationPeriods.model group),
calculationPeriodsDatesReference,
calculationPeriodsReference,
calculationPeriodsSchedule (defined in CommodityCalculationPeriods.model group),
calculationPeriodsScheduleReference
Known Usage Locations
Annotation
The different options for specifying the Calculation Periods.
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="CommodityCalculationPeriods.model">
<xsd:choice>
<xsd:element name="calculationDates" type="AdjustableDates"/>
<xsd:element name="calculationPeriods" type="AdjustableDates"/>
<xsd:element name="calculationPeriodsSchedule" type="CommodityCalculationPeriodsSchedule"/>
<xsd:group ref="CommodityCalculationPeriodsPointer.model"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/6)
calculationDates
Type:
AdjustableDates, complex content
The Calculation Period dates for this leg of the trade where the Calculation Periods are all one day long, typically a physically-settled emissions or metals trade. Only dates explicitly included determine the Calculation Periods and there is a Calculation Period for each date specified.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="calculationDates" type="AdjustableDates"/>
calculationPeriods
Type:
AdjustableDates, complex content
The Calculation Period start dates for this leg of the swap. This type is only intended to be used if the Calculation Periods differ on each leg. If Calculation Periods mirror another leg, then the calculationPeriodsReference element should be used to point to the Calculation Periods on that leg - or the calculationPeriodsScheduleReference can be used to point to the Calculation Periods Schedule for that leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="calculationPeriods" type="AdjustableDates"/>
calculationPeriodsSchedule
Type:
CommodityCalculationPeriodsSchedule, complex content
The Calculation Periods for this leg of the swap. This type is only intended to be used if the Calculation Periods differ on each leg. If Calculation Periods mirror another leg, then the calculationPeriodsReference element should be used to point to the Calculation Periods on the other leg - or the calculationPeriodsScheduleReference can be used to point to the Calculation Periods Schedule for that leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="calculationPeriodsSchedule" type="CommodityCalculationPeriodsSchedule"/>
