group "CommodityCoalReducingAtmosphere.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
4 elements
Defined:
globally in fpml-com-5-3.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

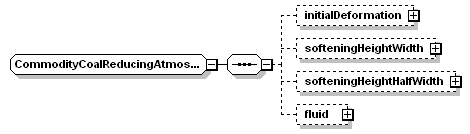

Content Model Diagram
Complex Content Model
initialDeformation?, softeningHeightWidth?, softeningHeightHalfWidth?, fluid?
Content Model Elements (4):
fluid, initialDeformation, softeningHeightHalfWidth, softeningHeightWidth
Known Usage Locations
Annotation
Items defining the attributes of the coal product determined by ash fusion tests.
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="CommodityCoalReducingAtmosphere.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="initialDeformation" type="CoalAttributeDecimal"/>
<xsd:element minOccurs="0" name="softeningHeightWidth" type="CoalAttributeDecimal"/>
<xsd:element minOccurs="0" name="softeningHeightHalfWidth" type="CoalAttributeDecimal"/>
<xsd:element minOccurs="0" name="fluid" type="CoalAttributeDecimal"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 4/4)
fluid
Type:
CoalAttributeDecimal, complex content
The temperature at which the ash cone flattens.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fluid" type="CoalAttributeDecimal"/>
initialDeformation
Type:
CoalAttributeDecimal, complex content
The temperature at which an ash cone shows evidence of deformation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="initialDeformation" type="CoalAttributeDecimal"/>
softeningHeightHalfWidth
Type:
CoalAttributeDecimal, complex content
The temperature at which the height of an ash cone equals half its width. (Hemisphere temperature).
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="softeningHeightHalfWidth" type="CoalAttributeDecimal"/>
softeningHeightWidth
Type:
CoalAttributeDecimal, complex content
The temperature at which the height of an ash cone equals its width. (Softening temperature).
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="softeningHeightWidth" type="CoalAttributeDecimal"/>
