group "Events.model"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
7 elements
Defined:
globally in fpml-business-events-5-3.xsd; see XML source
Includes:
definitions of 7 elements
Used:
at 4 locations

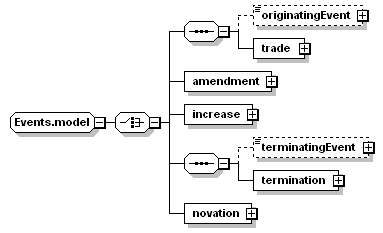

Content Model Diagram
Complex Content Model
(originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation
Content Model Elements (7):
amendment,
originatingEvent (defined in Events.model group),
 terminatingEvent,
trade (defined in Events.model group)
Known Usage Locations
Annotation
Choice between a trade and a post-trade event.
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="Events.model">
<xsd:choice>
<xsd:sequence>
<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>
<xsd:element name="trade" type="Trade"/>
</xsd:sequence>
<!-- BAL - end 2011-10-18 additions to address gaps with DTCC requirements -->
<xsd:element name="amendment" type="TradeAmendmentContent"/>
<!-- modified from the below for SDR reporting, BAL 2011-03
<xsd:element name="trade" type="Trade"/>
<xsd:element name="amendment" type="TradeAmendmentContent"/>
-->
<xsd:element name="increase" type="TradeNotionalChange"/>
<xsd:sequence>
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>
<xsd:element name="termination" type="TradeNotionalChange"/>
</xsd:sequence>
<xsd:element name="novation" type="TradeNovationContent"/>
<!--View Generation: SKIPPED optionExercise - Unsupported-->
<!--View Generation: SKIPPED optionExpiry - Unsupported-->
<!--View Generation: SKIPPED deClear - Unsupported-->
<!--View Generation: SKIPPED withdrawal - Unsupported-->
<!--View Generation: SKIPPED - Unsupported-->
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 7/7)
amendment
Type:
TradeAmendmentContent, complex content
XML Source (see within schema source)
<xsd:element name="amendment" type="TradeAmendmentContent"/>
increase
Type:
TradeNotionalChange, complex content
XML Source (see within schema source)
<xsd:element name="increase" type="TradeNotionalChange"/>
novation
Type:
TradeNovationContent, complex content
XML Source (see within schema source)
<xsd:element name="novation" type="TradeNovationContent"/>
originatingEvent
Type:
OriginatingEvent, simple content
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (see within schema source)
<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>
terminatingEvent
Type:
TerminatingEvent, simple content
This may be used to describe why a trade was terminated.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>
termination
Type:
TradeNotionalChange, complex content
XML Source (see within schema source)
<xsd:element name="termination" type="TradeNotionalChange"/>
trade
Type:
Trade, complex content
XML Source (see within schema source)
<xsd:element name="trade" type="Trade"/>
