element <novation> (local)

Namespace:	http://www.fpml.org/FpML-5/transparency
Type:	TradeNovationContent
Content:	complex, 17 elements
Defined:	locally witnin Events.model group in fpml-business-events-5-3.xsd; see XML source

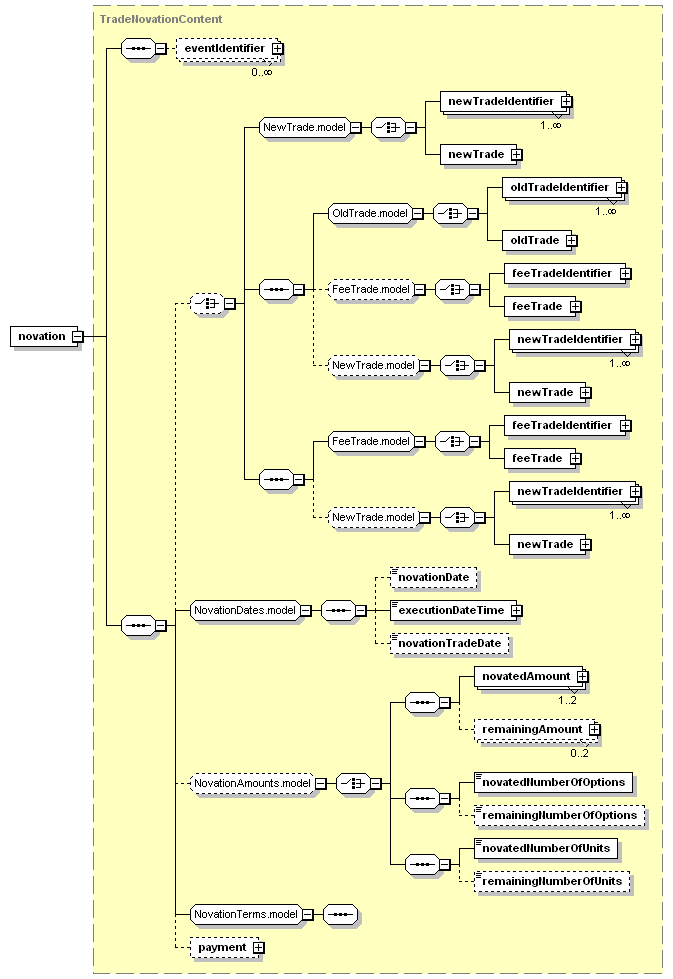

Content Model Diagram

XML Representation Summary

<novation>

Content:

eventIdentifier*, (newTradeIdentifier+ | newTrade | ((oldTradeIdentifier+ | oldTrade), (feeTradeIdentifier | feeTrade)?, (newTradeIdentifier+ | newTrade)?) | ((feeTradeIdentifier | feeTrade), (newTradeIdentifier+ | newTrade)?))?, novationDate?, executionDateTime, novationTradeDate?, ((novatedAmount[1..2], remainingAmount[0..2]) | (novatedNumberOfOptions, remainingNumberOfOptions?) | (novatedNumberOfUnits, remainingNumberOfUnits?))?, payment?

</novation>

Content model elements (17):

eventIdentifier (defined in AbstractEvent complexType),

executionDateTime (in novation),

feeTradeIdentifier,

newTradeIdentifier,

novatedNumberOfOptions,

novatedNumberOfUnits,

novationTradeDate,

oldTrade (in novation),

oldTradeIdentifier (in novation),

payment (in novation),

remainingAmount,

remainingNumberOfOptions,

remainingNumberOfUnits

Included in content model of elements (2):

publicExecutionReport, publicExecutionReportRetracted

XML Source (see within schema source)

<xsd:element name="novation" type="TradeNovationContent"/>
