element <commoditySwap> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	CommoditySwap
Content:	complex, 1 attribute, 14 elements
Subst.Gr:	may substitute for element product
Defined:	globally in fpml-com-5-7.xsd; see XML source
Used:	at 1 location

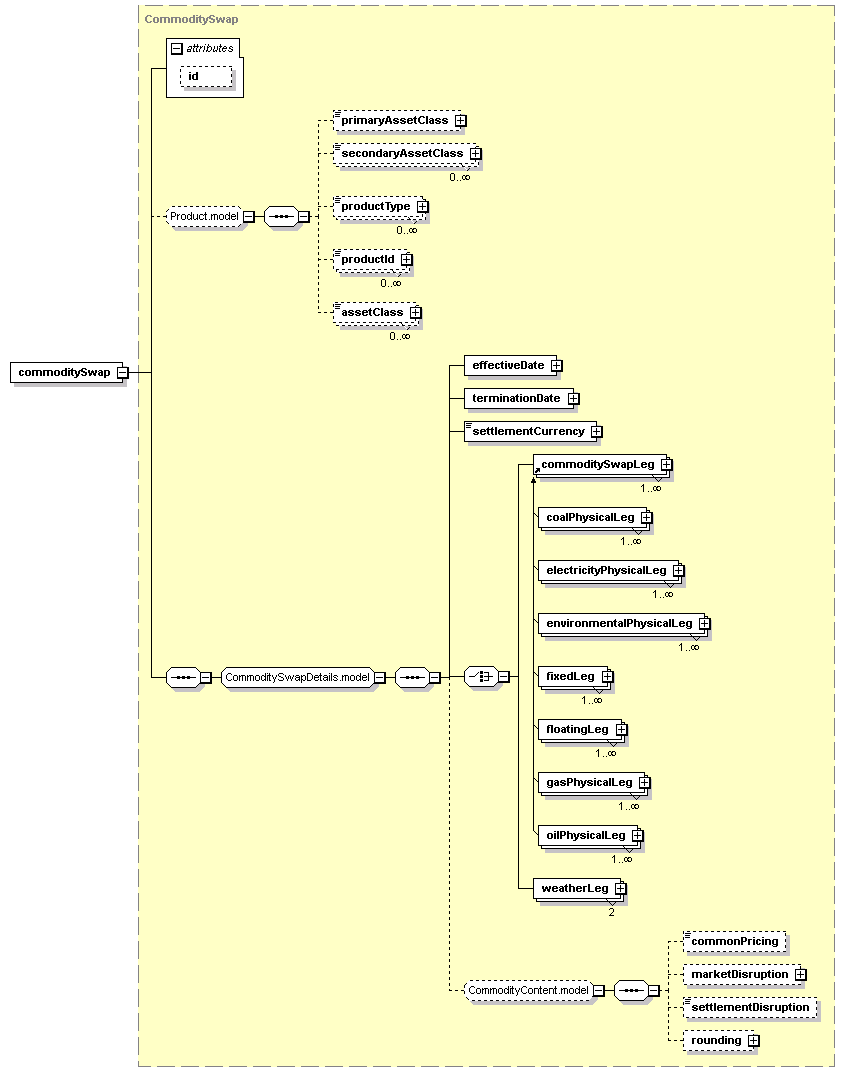

Content Model Diagram

XML Representation Summary

<commoditySwap

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, effectiveDate, terminationDate, settlementCurrency, (commoditySwapLeg+ | weatherLeg[2..2]), (commonPricing?, marketDisruption?, settlementDisruption?, rounding?)?

</commoditySwap>

Content model elements (14):

assetClass,

commoditySwapLeg,

commonPricing,

effectiveDate (defined in CommoditySwapDetails.model group),

marketDisruption (defined in CommodityContent.model group),

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

rounding (defined in CommodityContent.model group),

secondaryAssetClass,

settlementCurrency (defined in CommoditySwapDetails.model group),

settlementDisruption,

terminationDate (defined in CommoditySwapDetails.model group),

weatherLeg

Included in content model of elements (1):

commodityOption

May contain elements by substitutions (7):

coalPhysicalLeg, electricityPhysicalLeg, environmentalPhysicalLeg, fixedLeg, floatingLeg, gasPhysicalLeg, oilPhysicalLeg

May be included in elements by substitutions (20):

feeTrade,

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionExercise),

originalTrade (in optionExpiry defined in Events.model group),

physicalSettlement (in optionExercise),

resultingTrade (defined in TradeChangeBase complexType),

resultingTrade (in physicalSettlement in optionExercise),

strategy,

trade (defined in DataDocument complexType),

trade (defined in Events.model group),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradePackage complexType),

trade (in affectedTransactions),

trade (in amendment),

trade (in approvalStatusNotification),

trade (in clearingStatusItem)

Known Usage Locations

Within model groups (1):

CommodityPhysicalOption.model [ref]

Annotation

Defines a commodity swap product.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commoditySwap" substitutionGroup="product" type="CommoditySwap"/>
