element <product> (global abstract)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	Product
Content:	complex, 1 attribute, 5 elements
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	may be substituted with 38 elements
Defined:	globally in fpml-shared-5-7.xsd; see XML source
Used:	at 41 locations

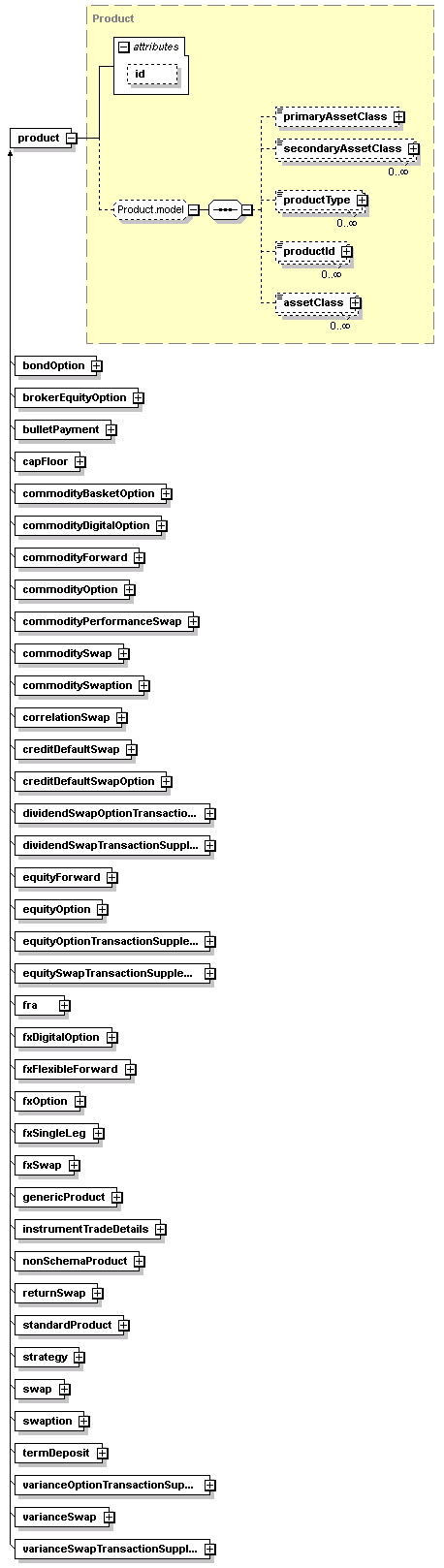

Content Model Diagram

XML Representation Summary

<product

=

xsd:ID

>

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?

</product>

Content model elements (5):

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

secondaryAssetClass

Included in content model of elements (20):

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionExercise),

originalTrade (in optionExpiry defined in Events.model group),

physicalSettlement (in optionExercise),

resultingTrade (defined in TradeChangeBase complexType),

resultingTrade (in physicalSettlement in optionExercise),

trade (defined in DataDocument complexType),

trade (defined in Events.model group),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradePackage complexType),

trade (in affectedTransactions),

trade (in amendment),

trade (in approvalStatusNotification),

trade (in clearingStatusItem)

May be substituted with elements (38):

Known Usage Locations

Within global complexTypes (3):

PhysicalSettlement [ref], Strategy [ref], Trade [ref]
As head element of substitution group affiliations (38):

bondOption, brokerEquityOption, bulletPayment, capFloor, commodityBasketOption, commodityDigitalOption, commodityForward, commodityOption, commodityPerformanceSwap, commoditySwap, commoditySwaption, correlationSwap, creditDefaultSwap, creditDefaultSwapOption, dividendSwapOptionTransactionSupplement, dividendSwapTransactionSupplement, equityForward, equityOption, equityOptionTransactionSupplement, equitySwapTransactionSupplement, fra, fxDigitalOption, fxFlexibleForward, fxOption, fxSingleLeg, fxSwap, genericProduct, instrumentTradeDetails, nonSchemaProduct, returnSwap, standardProduct, strategy, swap, swaption, termDeposit, varianceOptionTransactionSupplement, varianceSwap, varianceSwapTransactionSupplement

Annotation

An abstract element used as a place holder for the substituting product elements.

XML Source (w/o annotations (1); see within schema source)

<xsd:element abstract="true" name="product" type="Product"/>
