element <varianceOptionTransactionSupplement> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
VarianceOptionTransactionSupplement
Content:
complex, 1 attribute, 18 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-variance-swaps-5-7.xsd; see XML source
Used:
never

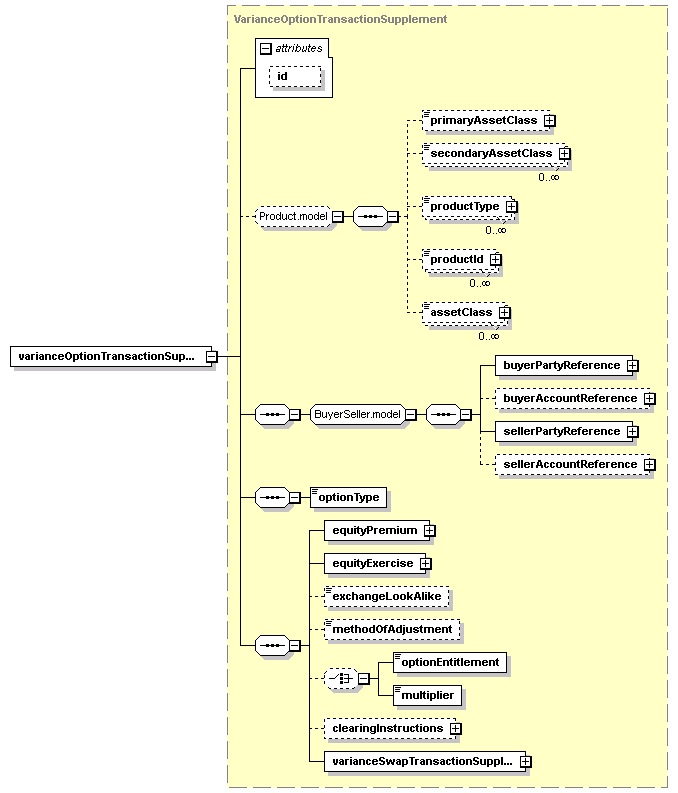

Content Model Diagram
XML Representation Summary
<varianceOptionTransactionSupplement

 =
xsd:ID

>

Content:
</varianceOptionTransactionSupplement>
Content model elements (18):
assetClass,
buyerAccountReference,
buyerPartyReference (defined in BuyerSeller.model group),
clearingInstructions (in varianceOptionTransactionSupplement),
equityExercise (in varianceOptionTransactionSupplement),
equityPremium (in varianceOptionTransactionSupplement),
exchangeLookAlike (in varianceOptionTransactionSupplement),
methodOfAdjustment (in varianceOptionTransactionSupplement),
multiplier (in varianceOptionTransactionSupplement),
optionEntitlement (in varianceOptionTransactionSupplement),
optionType (defined in OptionBase complexType),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass,
sellerAccountReference,
sellerPartyReference (defined in BuyerSeller.model group),
varianceSwapTransactionSupplement (in varianceOptionTransactionSupplement)
May be included in elements by substitutions (20):
feeTrade,
newTrade,
oldTrade (defined in TradeChangeContent complexType),
oldTrade (in novation),
originalTrade (defined in TradeChangeBase complexType),
originalTrade (in optionExercise),
originalTrade (in optionExpiry defined in Events.model group),
physicalSettlement (in optionExercise),
resultingTrade (defined in TradeChangeBase complexType),
resultingTrade (in physicalSettlement in optionExercise),
strategy,
trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
trade (defined in TradePackage complexType),
trade (in affectedTransactions),
trade (in amendment),
trade (in approvalStatusNotification),
trade (in clearingStatusItem)
Annotation
Specifies the structure of a variance option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="varianceOptionTransactionSupplement" substitutionGroup="product" type="VarianceOptionTransactionSupplement"/>
