element <swaption> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	Swaption
Content:	complex, 1 attribute, 18 elements
Subst.Gr:	may substitute for element product
Defined:	globally in fpml-ird-5-8.xsd; see XML source
Used:	never

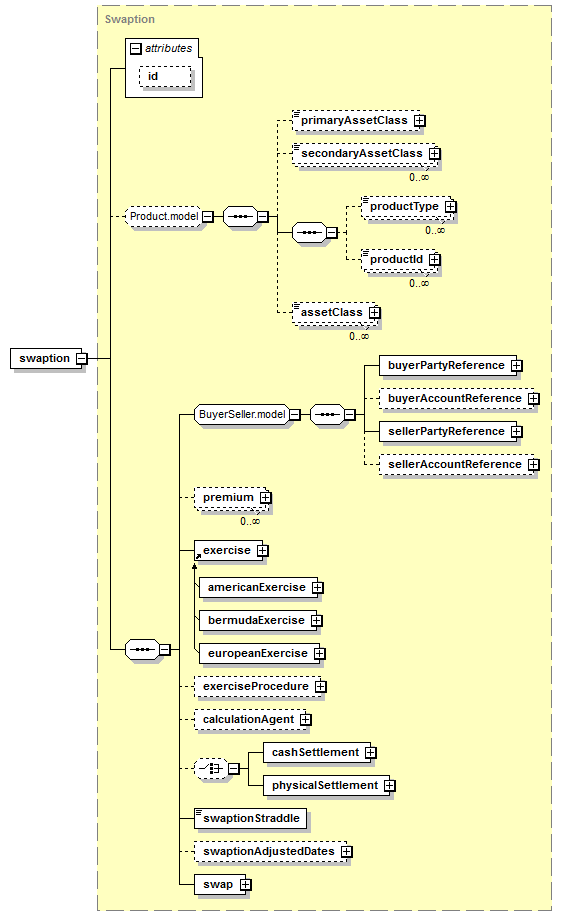

Content Model Diagram

XML Representation Summary

<swaption

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?, premium*, exercise, exerciseProcedure?, calculationAgent?, (cashSettlement | physicalSettlement)?, swaptionStraddle, swaptionAdjustedDates?, swap

</swaption>

Content model elements (18):

assetClass,

buyerAccountReference,

buyerPartyReference (defined in BuyerSeller.model group),

calculationAgent (in swaption),

cashSettlement (in swaption),

exercise,

exerciseProcedure (in swaption),

physicalSettlement (in swaption),

premium (in swaption),

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

secondaryAssetClass,

sellerAccountReference,

sellerPartyReference (defined in BuyerSeller.model group),

swap (in swaption),

swaptionAdjustedDates,

swaptionStraddle

May contain elements by substitutions (3):

americanExercise, bermudaExercise, europeanExercise

May be included in elements by substitutions (20):

feeTrade,

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in OptionExercise complexType),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionExpiry defined in OptionsEvents.model group),

physicalSettlement (defined in OptionExercise complexType),

resultingTrade (defined in TradeChangeBase complexType),

resultingTrade (in physicalSettlement defined in OptionExercise complexType),

strategy,

trade (defined in DataDocument complexType),

trade (defined in TradeAmendmentContent complexType),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradePackage complexType),

trade (defined in TradingEvents.model group),

trade (in affectedTransactions),

trade (in approvalStatusNotification),

trade (in clearingStatusItem)

Annotation

A swaption product definition.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="swaption" substitutionGroup="product" type="Swaption"/>
