element <commoditySwap> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CommoditySwap
Content:
complex, 1 attribute, 14 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-com-5-8.xsd; see XML source
Used:
at 1 location

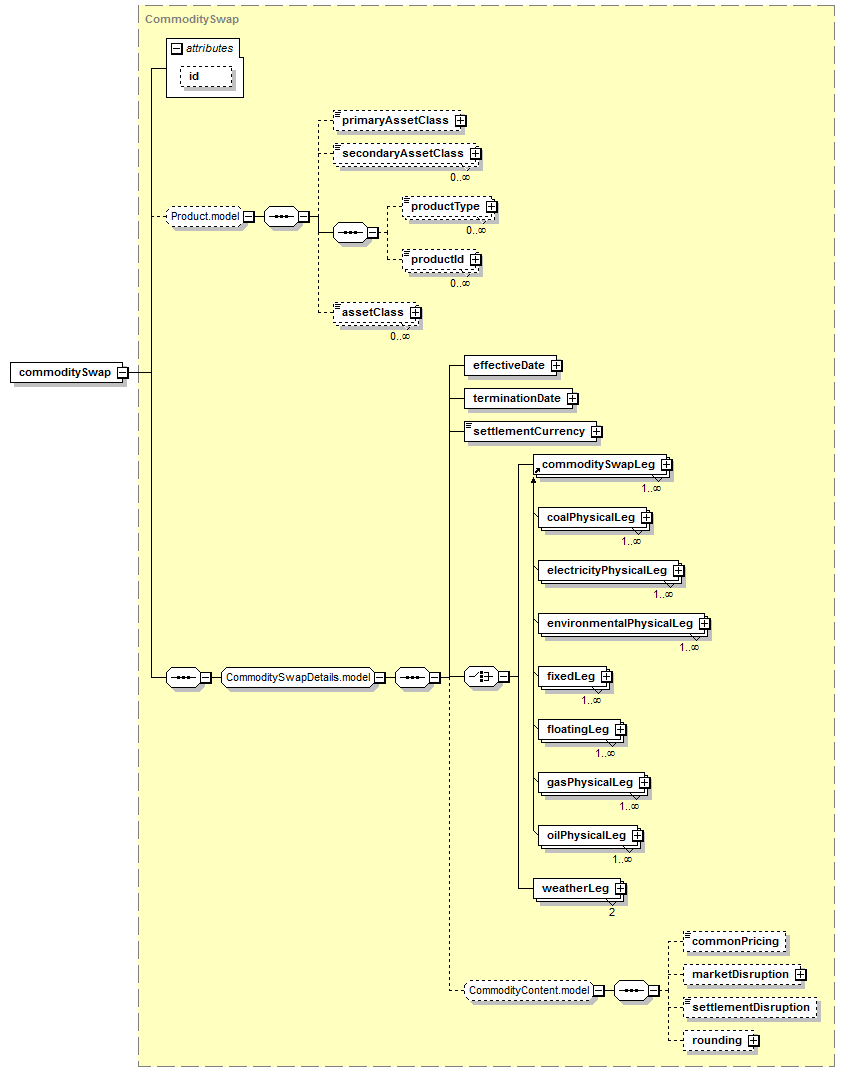

Content Model Diagram
XML Representation Summary
<commoditySwap

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, effectiveDate, terminationDate, settlementCurrency, (commoditySwapLeg+ | weatherLeg[2..2]), (commonPricing?, marketDisruption?, settlementDisruption?, rounding?)?
</commoditySwap>
Content model elements (14):
assetClass,
commoditySwapLeg,
commonPricing,
effectiveDate (defined in CommoditySwapDetails.model group),
marketDisruption (defined in CommodityContent.model group),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
rounding (defined in CommodityContent.model group),
secondaryAssetClass,
settlementCurrency (defined in CommoditySwapDetails.model group),
settlementDisruption,
terminationDate (defined in CommoditySwapDetails.model group),
weatherLeg
Included in content model of elements (1):
commodityOption
May contain elements by substitutions (7):
coalPhysicalLeg, electricityPhysicalLeg, environmentalPhysicalLeg, fixedLeg, floatingLeg, gasPhysicalLeg, oilPhysicalLeg
May be included in elements by substitutions (20):
feeTrade,
newTrade,
oldTrade (defined in TradeChangeContent complexType),
oldTrade (in novation),
originalTrade (defined in OptionExercise complexType),
originalTrade (defined in TradeChangeBase complexType),
originalTrade (in optionExpiry defined in OptionsEventsBase.model group),
physicalSettlement (defined in OptionExercise complexType),
resultingTrade (defined in TradeChangeBase complexType),
resultingTrade (in physicalSettlement defined in OptionExercise complexType),
strategy,
trade (defined in DataDocument complexType),
trade (defined in TradeAmendmentContent complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
trade (defined in TradePackage complexType),
trade (defined in TradingEventsBase.model group),
trade (in affectedTransactions),
trade (in approvalStatusNotification),
trade (in clearingStatusItem)
Known Usage Locations
Annotation
Defines a commodity swap product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commoditySwap" substitutionGroup="product" type="CommoditySwap"/>
