element <floatingLeg> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FloatingPriceLeg
Content:
complex, 1 attribute, 22 elements
Subst.Gr:
may substitute for element commoditySwapLeg
Defined:
globally in fpml-com-5-8.xsd; see XML source
Used:
never

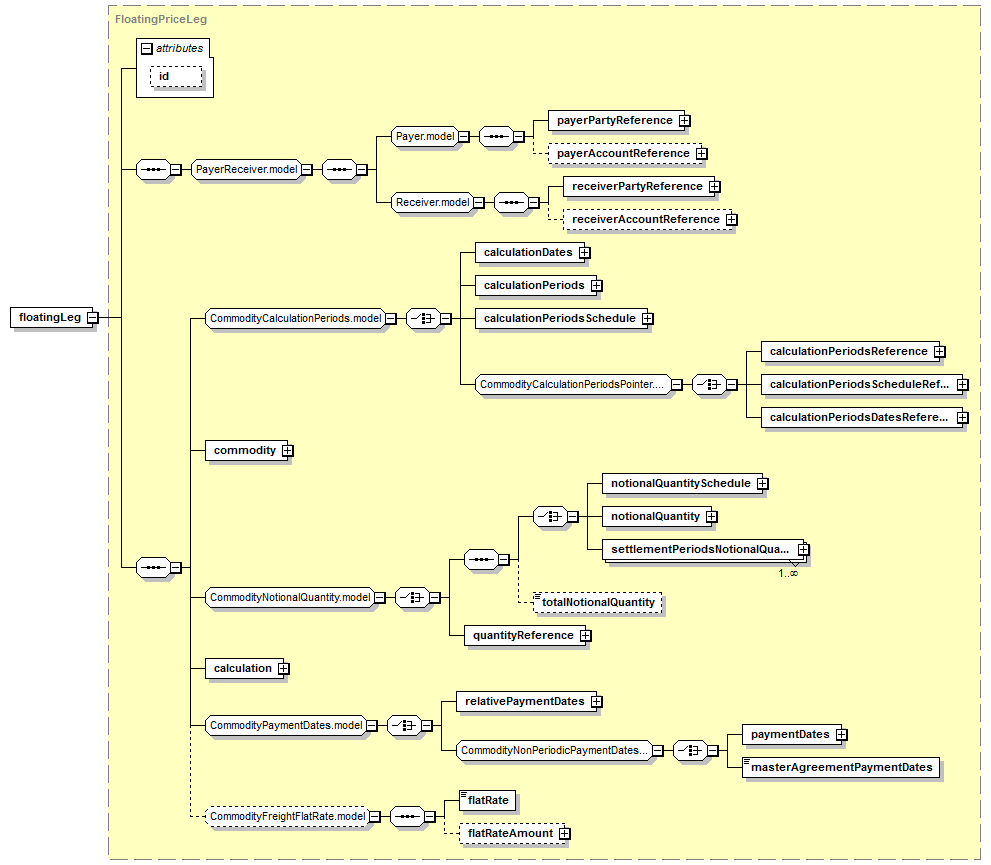

Content Model Diagram
XML Representation Summary
<floatingLeg

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, (calculationDates | calculationPeriods | calculationPeriodsSchedule | calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), commodity, (((notionalQuantitySchedule | notionalQuantity | settlementPeriodsNotionalQuantity+), totalNotionalQuantity?) | quantityReference), calculation, (relativePaymentDates | paymentDates | masterAgreementPaymentDates), (flatRate, flatRateAmount?)?
</floatingLeg>
Content model elements (22):
calculation (in floatingLeg),
calculationDates (defined in CommodityCalculationPeriods.model group),
calculationPeriods (defined in CommodityCalculationPeriods.model group),
calculationPeriodsDatesReference,
calculationPeriodsReference,
calculationPeriodsSchedule (defined in CommodityCalculationPeriods.model group),
calculationPeriodsScheduleReference,
commodity (in floatingLeg),
flatRate,
flatRateAmount,
masterAgreementPaymentDates,
notionalQuantity (defined in CommodityNotionalQuantity.model group),
notionalQuantitySchedule,
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentDates (defined in CommodityNonPeriodicPaymentDates.model group),
quantityReference (defined in CommodityNotionalQuantity.model group),
receiverAccountReference,
receiverPartyReference,
relativePaymentDates,
settlementPeriodsNotionalQuantity,
totalNotionalQuantity (defined in CommodityNotionalQuantity.model group)
May be included in elements by substitutions (2):
Annotation
Floating Price leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="floatingLeg" substitutionGroup="commoditySwapLeg" type="FloatingPriceLeg"/>
