complexType "Schedule"
Namespace: |
|
Content: |
|
Defined: |
|
Includes: |
|
Used: |
|

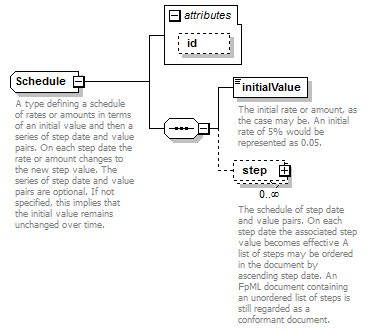

XML Representation Summary |
<... |
|
|
|
> |
|
|
</...> |
Content Model Elements (2):
-
Known Direct Subtypes (7):
-
Known Indirect Subtypes (2):
-
All Direct / Indirect Based Elements (28):
-
Annotation
A type defining a schedule of rates or amounts in terms of an initial value and then a series of step date and value pairs. On each step date the rate or amount changes to the new step value. The series of step date and value pairs are optional. If not specified, this implies that the initial value remains unchanged over time.
XML Source (w/o annotations (3); see within schema source)
<xsd:sequence>
<xsd:element name="initialValue" type="xsd:decimal"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="step" type="Step"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
|
Attribute Detail (all declarations; defined within this component only; 1/1)
id
-
Type: |
xsd:ID, predefined |
Use: |
optional |
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
|
Content Element Detail (all declarations; defined within this component only; 2/2)
-
Type: |
xsd:decimal, predefined, simple content |
The initial rate or amount, as the case may be. An initial rate of 5% would be represented as 0.05.
XML Source (w/o annotations (1); see within schema source)
-
The schedule of step date and value pairs. On each step date the associated step value becomes effective A list of steps may be ordered in the document by ascending step date. An FpML document containing an unordered list of steps is still regarded as a conformant document.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="step" type="Step"/>
|
