element <fixedLeg> (global) | XML Schema Documentation

element <fixedLeg> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	FixedPriceLeg
Content:	complex, 1 attribute, 26 elements
Subst.Gr:	may substitute for element commoditySwapLeg
Defined:	globally in fpml-com-5-3.xsd; see XML source
Used:	never

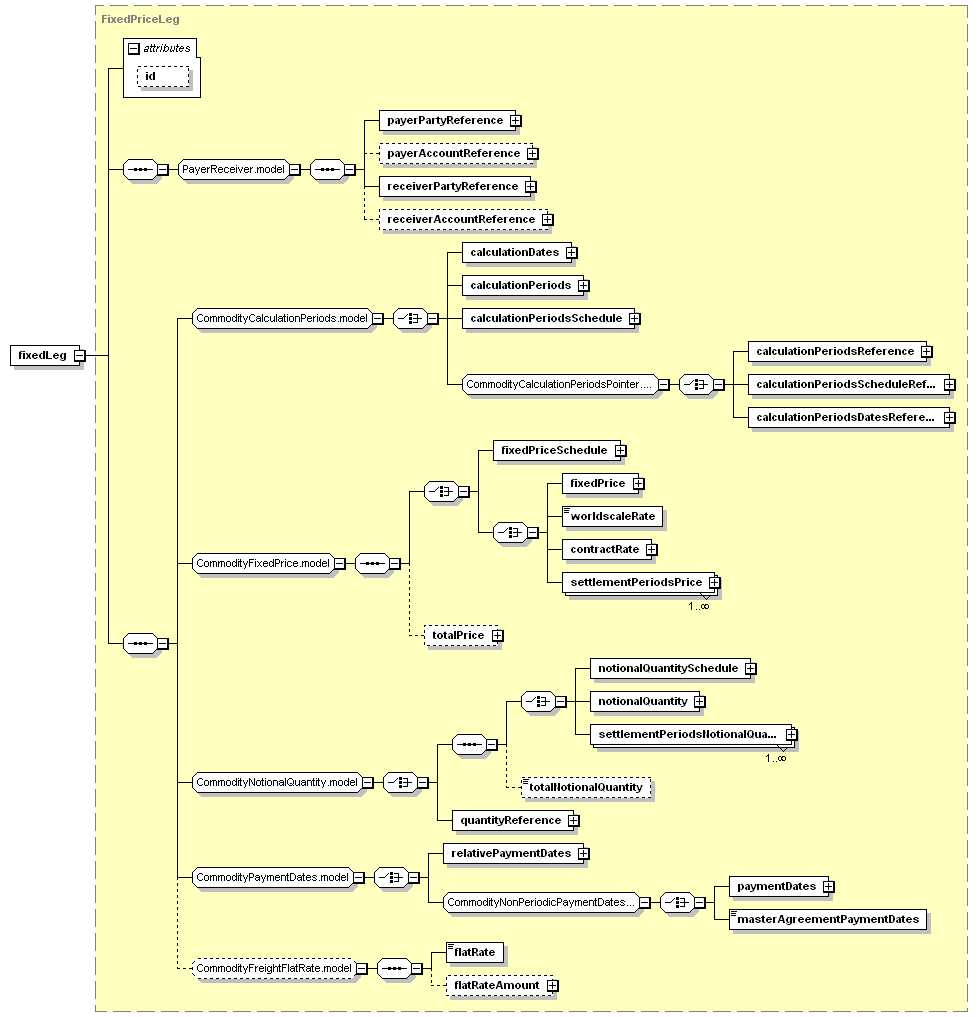

Content Model Diagram

XML Representation Summary

<fixedLeg

=

xsd:ID

>

Content:

payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, (calculationDates | calculationPeriods | calculationPeriodsSchedule | calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), (fixedPriceSchedule | fixedPrice | worldscaleRate | contractRate | settlementPeriodsPrice+), totalPrice?, (((notionalQuantitySchedule | notionalQuantity | settlementPeriodsNotionalQuantity+), totalNotionalQuantity?) | quantityReference), (relativePaymentDates | paymentDates | masterAgreementPaymentDates), (flatRate, flatRateAmount?)?

</fixedLeg>

Content model elements (26):

calculationDates (defined in CommodityCalculationPeriods.model group),

calculationPeriods (defined in CommodityCalculationPeriods.model group),

calculationPeriodsDatesReference,

calculationPeriodsReference,

calculationPeriodsSchedule (defined in CommodityCalculationPeriods.model group),

calculationPeriodsScheduleReference,

fixedPrice (in fixedLeg),

fixedPriceSchedule,

flatRateAmount,

masterAgreementPaymentDates,

notionalQuantity,

notionalQuantitySchedule,

payerAccountReference,

payerPartyReference,

paymentDates (defined in CommodityNonPeriodicPaymentDates.model group),

quantityReference (defined in CommodityNotionalQuantity.model group),

receiverAccountReference,

receiverPartyReference,

relativePaymentDates,

settlementPeriodsNotionalQuantity,

settlementPeriodsPrice,

totalNotionalQuantity,

totalPrice (in fixedLeg),

May be included in elements by substitutions (2):

commoditySwap (in commoditySwaption)

Annotation

Fixed Price Leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="fixedLeg" substitutionGroup="commoditySwapLeg" type="FixedPriceLeg"/>
